ENCLOSURE MANUFACTURING

Modular Design │ Innovative │ Environment Friendly

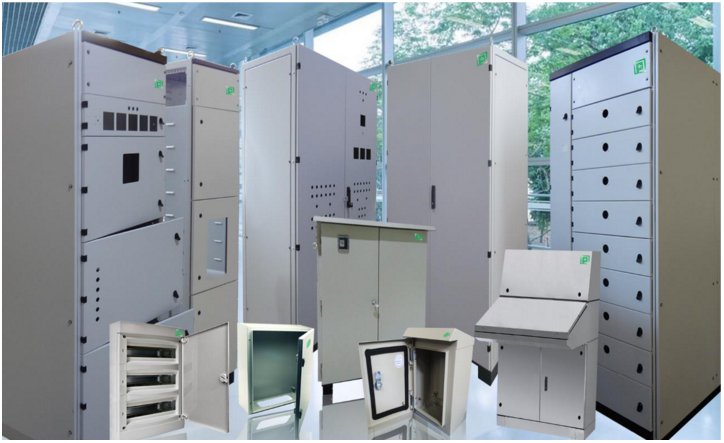

‘‘We are one of the leading manufacturer of sheet metal enclosure in UAE and other GCC region’’

We evaluate and manufacture custom size sheet metal enclosures as per industry standards. Our Polar Enclosures are manufactured in high quality sheet metals with ultra-cutting edge technology. Polar Enclosures are suitable for demanding conditions with indoor and outdoor use. We use only the material that has a high impact residence and a high degree of protection. We use G.I, Aluminum and Stainless Steel materials to build enclosures. Some of the enclosure types are:

  • Form IV Enclosure
  • Form II Enclosure
    • Extendable Enclosure
    • Large Enclosure
    • Medium Enclosure
    • Compact Enclosure
  • Modular Distribution Boxes
    • Aluminum Enclosure
    • Single Wall Aluminum Enclosure
  • Double Wall Aluminum Enclosure
  • Stainless Steel Enclosure
  • UPS & Battery Racks Enclosure
  • Water Meter Cabinets
  • Control Desks & Consoles
  • Package Substation

‘’Innovative Design to Fit with Indoor & Outdoor Use’’

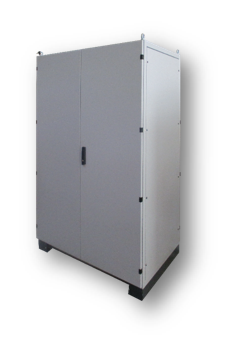

Form IV Enclosure

  • Specifications
    • Type tested enclosures as per IEC-61439
    • Manufactured with galvanized steel sheets and Stainless steel sheets
    • Form of separation: Form-2b, Form-3b, Form -4a & 4b and Form-4 Type-7
    • Standard RAL7032 / 7035 texture finish 7 stage powder coating

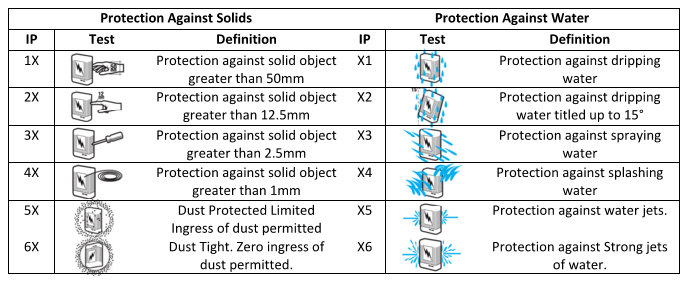

    • Ingressive Protection class is IP54
    • Modular design as per customer requirement
  • Features
    • Enclosures are designed in different sizes to meet electrical room layout
    • Safety on normal operation
    • Doors can be easily removable for performing cut-out operations
    • Easy access for cabling and maintenance operations.
    • Suitable for front access and rear access
    • Perforated vertical corner members allow fixing of additional depth members
    • Earth stud in body and door for electrocution protection
    • Suitable gasket sealant for tight fit between door and casing
    • Extendable in both left and right hand side
    • Enclosures with different color and finishing

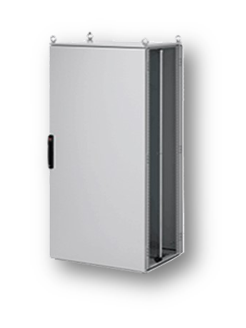

Form II Extendable Enclosure

  • Specifications
    • Type tested enclosures as per IEC-61439
    • Manufactured with electro galvanized steel sheet / Stainless steel sheets
    • Standard RAL7032 / RAL 7035 texture finish 7 stage powder coating
    • Ingressive Protection class is IP55
    • Enclosures are extendable which make them suitable to form long switchboard
    • Concealed and easily removable hinges allowing 180 degree door opening
    • Doors can be easily removable for performing cut-out operations
    • Swing handle with 3 point lock.
  • Features
    • Mounting plate is fully adjustable
    • Perforated vertical corner members allow fixing of additional depth members
    • Earth stud in body and door for electrocution protection
    • Suitable gasket sealant for tight fit between door and casing
    • Glanding space of 25mm at the bottom avoids additional plinth
    • Eyebolts are available for lifting Options
    • 90-degree door stopper
    • Door with transparent sheet
    • Enclosures with different colors and finishing

Form II Large Enclosure

  • Specifications
    • Type tested enclosures as per IEC-61439
    • Manufactured with galvanized steel sheet / Stainless steel sheets
    • Standard RAL7032 / RAL 7035 texture finish 7 stage powder coating
    • Ingressive Protection class is IP55
    • Welded Construction with rear cover
    • Concealed and easily removable hinges allowing 120 degree door opening
    • Doors can be easily removable for performing cut-out operations
    • Swing handle with 3 point lock
    • Earth stud in body and door for electrocution protection
    • Suitable gasket sealant for tight fit between door and casing
    • Glanding space of 25mm at the bottom avoids additional plinth
  • Features
    • Swing handle with key lock and “T” handle option
    • 90-degree door stopper
    • Door with transparent sheet
    • Enclosures with different colors and finishing
    • Enclosure with canopy for outdoor applications

Form II Medium Enclosure

  • Specifications
    • Type tested enclosures as per IEC-61439
    • Manufactured with electro galvanized steel sheet / Aluminum /Stainless steel sheets
    • Standard RAL7032 / RAL 7035 texture finish 7 stage powder coating
    • Ingressive Protection class is IP55 / IP65 / IP66
    • Welded studs on enclosure facilitates direct fixing of mounting plate
    • Welded mono block body with folding at the front gives more rigidity
    • Concealed and easily removable hinges allowing 120 degree door opening
    • Doors can be easily removable for performing cut-out operations
    • Standard double bit key operated locks
    • Earth stud in body and door for electrocution protection
  • Features
    • Suitable gasket sealant for tight fit between door and casing
    • Glanding space of 25mm at the bottom avoids additional plinth options
    • “T” Handle with or without lock in Stainless steel or other materials
    • 90-degree door stopper
    • Door with transparent sheet
    • Enclosures with different colors and finishing
    • Enclosure with canopy for outdoor applications

Form II Compact Enclosure

  • Specifications
    • Type tested enclosures as per IEC-61439
    • Manufactured with galvanized steel sheet / Stainless steel sheets
    • Standard RAL7032 / RAL 7035 texture finish 7 stage powder coating
    • Ingressive Protection class is IP55/IP65/IP66
    • Welded studs on enclosure facilitates direct fixing of mounting plate
    • Welded mono block body with folding at the front gives more rigidity
    • Concealed and easily removable hinges allowing 120 degree door opening
    • Doors can be easily removable for performing cut-out operations
    • Standard double bit key operated locks
    • Earth stud in body and door for electrocution protection
  • Features
    • Suitable gasket sealant for tight fit between door and casing / Wall mounting provisions
    • “T” Handle with or without lock in Stainless steel or other materials
    • 90 degree door stopper / Door with transparent sheet
    • Enclosures with different colors and finishing
    • Wall mounting brackets as per requirement
    • Extension box with similar construction with screwed cover.

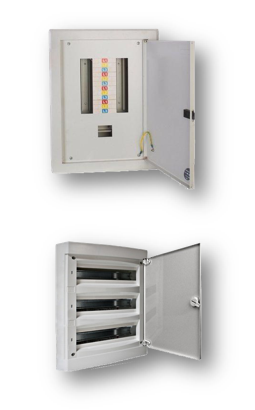

Modular Distribution Board

  • Specifications
    • Type tested enclosures as per IEC-61439
    • Polar Modular enclosures are made of galvanized steel sheet
    • Suitable for Surface and Flush mounting
    • Standard RAL7035 / RAL 7035 texture finish 7 stage powder coating
    • Ingressive Protection class is IP41
    • Modular boards are available up to 8 Rows
    • DIN rail chassis level can be adjusted by using fly nuts
    • DIN rail chassis is designed to accept snap on type neutral and earth bars
    • Spacious enclosures facilitating ease of wiring and efficient heat dissipation
    • Ideal for changing the door opening direction
    • Press formed dead front cover and door for better strength
    • Effective continuity between door, dead front cover and back box.
  • Features
    • Available in 24 modules as well
    • Door with cam type key-lock
    • Door with transparent sheet
    • Enclosures with different colors and finishing
    • Extension box suitable for top and bottom entry

Single Wall Aluminum Enclosure

  • Specifications
    • Type tested enclosures as per IEC-61439
    • Manufactured with Aluminum sheets
    • RAL7032 Texture/RAL7035 Texture finish with 7 stage Process
    • Ingressive Protection class is IP55/IP65/IP66
    • Welded studs on enclosure facilitates direct fixing of mounting plate
    • Welded mono block body with folding at the front gives more rigidity
    • Male Female Hinges (180 degree door opening)
    • Doors can be easily removable for performing cut-out operations
    • Standard double bit key operated locks
    • Earth stud in body and door for electrocution protection
    • Suitable gasket sealant for tight fit between door and casing
    • Glanding space of 25mm at the bottom avoids additional plinth
  • Features
    • “T” Handle with or without lock in Stainless steel or other materials
    • 90 degree door stopper
    • Door with transparent sheet
    • Enclosures with different colors and finishing
    • Enclosure with canopy for outdoor applications

Double Wall Aluminum Enclosure

  • Specifications
    • Manufactured with Aluminum sheets
    • RAL7032 Texture/RAL7035 Texture finish with 7 stage Process
    • Ingressive Protection class is IP55
    • Welded studs on enclosure facilitates direct fixing of mounting plate
    • Welded mono block body with folding at the front gives more rigidity
    • Male Female Hinges (180 degree door opening)
    • Standard T Handle operated locks
    • Earth stud in body and door for electrocution protection
    • Suitable gasket sealant for tight fit between door and casing
    • Glanding space of 25mm at the bottom avoids additional plinth
  • Features
    • 90-degree door stopper
    • Door with transparent sheet
    • Enclosures with different colors and finishing
    • Dimensions can be customized up to 2000mm Height
    • “T” Handle with or without lock in Stainless steel or other materials

Stainless Steel Enclosure

  • Specifications
    • Stainless steel of grade 304, 316L
    • High quality Surface Grinded, grain 240
    • Ingressive Protection class is IP55/IP65/IP66
    • Universal enclosure with covered hinge and lock
    • Switchgear cabinets with hinged door
    • Mounting plate attachment above stud bolts / threaded weld nuts
    • Enclosures are designed in different sizes as per requirement
    • Safety on normal operation.
    • Doors can be easily removable for performing cut-out operations
    • Easy access for cabling and maintenance operations.
    • Earth stud in body and door for electrocution protection
    • Suitable gasket sealant for tight fit between door and casing

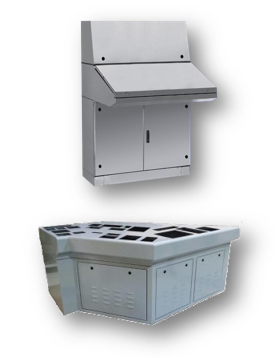

Control Desk & Consoles

  • Specifications
    • Facilitates to access all internal equipment’s / devices
    • Standard powder color – RAL-7035 / 7032 (Special color / finish on request).
    • Bottom hinged doors will be provided.
    • Console hinged door and lid door held by the Pneumatic stay.
    • One or two rear doors covering the height of the control desk.
    • Protection rating IP55. Resistance to external mechanical impacts.
    • Control desk equipped with adjustment rails
    • 25 mm to adjustment of mounting plate depth, bottom and top rail
    • Bottom Gland plate for the cable entry.
    • Size of the control desk as per customer requirements

BTU Meter Boxes / Water Meter Cabinet

  • Specifications
    • To guarantee full access the equipment.
    • Material: GI / Aluminum
    • Color: RAL 7032 Texture / RAL7035 Texture.
    • Bottom hinged doors /Sliding covers / Fixed
    • Hanging holes to be provided.
    • Incoming and outgoing pipe entering cut outs
    • Special locks to be provided as per your request.
    • Comes with pad lock.

UPS Battery Rack Enclosure

  • Specifications
    • Designed to accommodate all brand UPS and Batteries
    • Welded heavy huge steel construction
    • Acid resistance powder coating
    • Front and back accessible to standard ups and battery handling
    • Locking doors with pocket for manuals and maintenance records
    • Designed for easy onsite loading and batteries handling

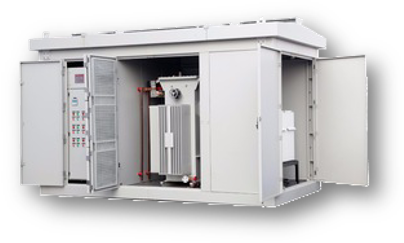

Package Substation

  • Specifications
    • Manufactured with Galvanized sheet steel
    • Corrosion resistant
    • Withstand for harsh environmental temperature
    • Withstand for humidity and Salinity
    • Tested to provide close coupled assembly
    • Reducing installation time and cost
    • Constructions facilitates for installing Transformers,
    • MV & LV switchgears
    • Compartments segregation by partition sheets
    • Gas spring Stoppers & Heavy duty hinges
