SWITCHGEAR ASSEMBLY

Polar assembled panel board products represent the high level of engineering innovation expected from the switchgear Industry. All Polar switchgear assembled panel boards are designed to meet the applicable industry standards and allow balance of the electrical load on each phase.

Our innovative designs simplify wiring and reduces the material requirements. Polar panel boards are extremely easy to install and it saves additional installation timings. Our Panel boards specifically designed to meet the needs of various industries including Residential complex, commercial complex, data centers, institutions, laboratories, healthcare facilities, Industrial facilities, critical load applications etc…

The company offers comprehensive services related to the low voltage panel board design, coordination study, manufacturing, supply, installation, testing and commissioning of the panel boards across GCC region. We are exclusively handling universal products of Schneider Electric, ABB, Siemens, Eaton and Allen Bradly components for our standard and custom panels.

Our teamwork and culture build on the company’s reputation and image internally and externally while driving initiatives to ensure Polar Switchgear Manufacturing LLC remains as employer of choice. We implement best-in-class operating practices and leverage companywide opportunities and best practices.

• MDB – Main Distribution Board
  • Complied as per IEC 61439-1
  • Rated Operation Voltage upto 1000V AC
  • Ranges from 800A to 6300A
  • Fault withstand 50KA/3 Sec, 85KA/1 Sec, 100KA/1 Sec

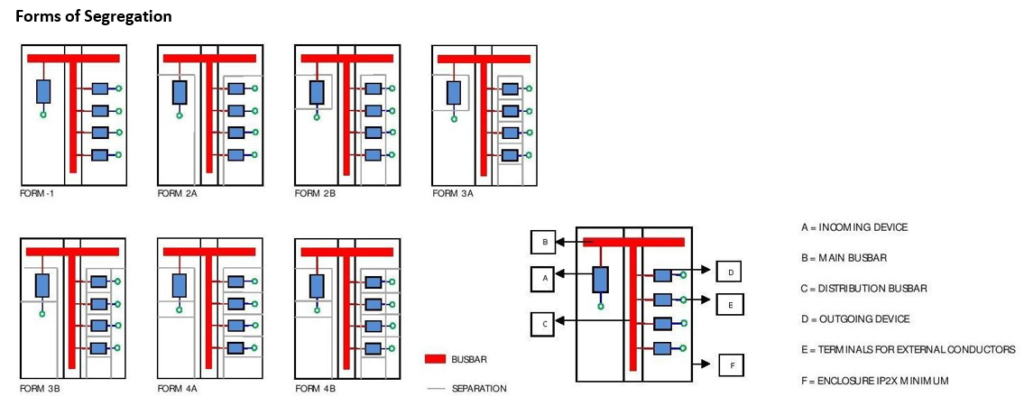

  • Form 2b, Form – 4 Type 6 & Form – 4 Type 7

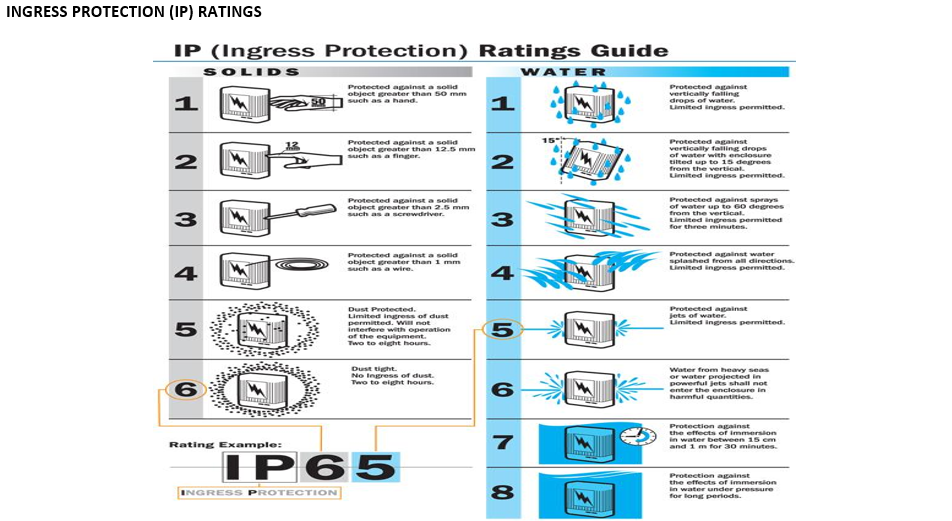

  • Ingress protection of IP 54 and IP42
  • Front and Rear Access
  • Top or bottom cable entry
  • Metering Instruments as per customer requirements
  • Incomer fixed draw-out ACB / MCCB
  • Outgoing breakers are either fixed, plug-in or draw out
  • Automatic transfer control as required [Controller or PLC]
  • HDHC 99.99% purity tin coated busbar
  • Incomer/Outgoing bus duct flange inter connections
  • Available in RAL – 9002, RAL 7035 and RAL 7032
  • Provisions for BMS integration

• SMDB – Sub Main Distribution Board
  • Completed as per IEC 61439-1
  • Rated Ranges from 100A to 2500A
  • Fault withstand 50KA/36KA/25KA/1 Sec.
  • Form 2b, Form – 4b, Type 6 / Type 7 construction
  • Floor or wall mounting type
  • Ingress protection of IP 42, IP 55, & IP 65
  • Front & Rear cabling access
  • Top or bottom cable entry with removable gland plates
  • Metering Instruments as per customer requirements
  • Incoming & Outgoing with fixed/Plug in/DOT device
  • Incomer with Isolator /MCCB/Non-Auto MCCB type
  • Incomer & Outgoing devices with BMS facility if required

• MCC – Motor Control Centers
  • Ranges from 63A to 6300A
  • Fault withstand 50KA/3 Sec, 85KA/1 Sec, 100KA/1 Sec
  • Form 2b, Form – 4 Type 6 & Form – 4 Type 7
  • MCC panel in complete draw-out construction
  • Floor or wall mounting type
  • Ingress protection of IP 54,and IP 42
  • Front / Rear cabling access
  • Top or bottom cable entry with removable gland plates
  • Metering Instruments as per customer requirements
  • Incoming & Outgoing with fixed/Plug in/DOT device
  • Incoming with ACB / Isolator /MCCB/Non-Auto ACB / MCCB
  • Outgoing device with DOL/Star Delta/Soft Starter/VFD/Thyristor controls
  • MCC Panels with PLC & HMI for Control and Monitoring

• Final Distribution Board
  • Complied as per IEC 61439 – 3
  • Ranges from 40A to 400A
  • Fault withstand 15KA / 25KA / 36KA
  • Ingress protection of IP31 / IP41/IP65
  • Row type / Ways Type / Split Type as required
  • Top or bottom cable entry
  • Metering instruments as per customer requirements
  • Optional incomer of Isolator / RCCB / MCCB
  • MCB / RCCB /RCBO Outgoing devices
  • Removable gland plates and pre-punched knock outs
  • Lighting and Chiller control.

• Capacitor Bank Panels
  • Compliance with IEC 61439-1 for busbar systems with components like MCCB and ACB
  • Complete solutions for automatic power factor
  • Ranges from 25KVAR to 1000KVAR with & without detuned reactors
  • Detuned reactor tuning order 2.7 (135 Hz), 3.8 (190 Hz) and 4.3 (215 Hz)
  • Step start indication at front door
  • Manual option for steps ON / OFF
  • Reactive power requirement study

• ATS Panels
  • Ranges from 40A to 6300A
  • Floor / Wall mounting type
  • Ingress protection of IP42/IP54 / IP65
  • Front/rear cabling access
  • Top or bottom cable entry with removable gland plates
  • Optional Metering instruments for both Incomers
  • ATS with 4P ACB / MCCB / Contactor
  • Microprocessor based ATS controller
  • ATS control with PLC logic.

• Generator Control Panels
  • Compliance with IEC 61439-1
  • Load manager, reverse power protection, earth fault, auto/manual synchronization,
  • dual volt meter, dual frequency meter all comes in one panel.
  • Integrated with PLC logic and microprocessor based relays.
  • Designed for both withdrawable and fixed versions of components.
  • Electrical distribution by using components like MCCB & ACBs.
  • Integrated electrical governor system with the differences in Voltage, frequency and phase angle set.
  • Hooter-alarm annunciation for fail to start.
  • Test switch Controls for Healthy start and stop.
  • Complete integrated solutions

• Synchronizing Panels
  • Ranges up to 6300A
  • Floor mounting type
  • Ingress protection of IP 54
  • Load Transfer by ACB/MCCB
  • Front and Rear cabling access
  • Top or bottom cable entry with removable gland plates

• Totalization Panels
  • Combinations of load transfer by ACB / MCCB / Contactor
  • Protection class up to IP 54
  • Load sharing/load shedding
  • Automatic and manual synchronizing
  • Factory built to client’s specifications
  • Ratings up to 6300 A
  • Control functions for engine monitoring, warm-up and cool down periods,
  • emergency shutdown, multi attempt engine start control, engine test runs

• Site Socket Panels
  • Reliable contacts prevent stops and power breaks
  • Tough & Safe are products for demanding applications and environments
  • Sockets with additional safety functions
  • Safe industrial plugs, connectors, inlets and socket outlets with screwless terminal connectors
  • Factory built to client’s specifications
  • Protection class up to IP 65 with canopy enclosure

• Pump Starter Panels
  • Ranges as per client requirement
  • Fault withstand 25KA / 36KA / 50KA /1Sec
  • Floor/Wall mounting type
  • Ingress protection of IP54 / IP65
  • Front/Rear cabling access
  • Top or bottom cable entry with removable gland plates
  • Metering instruments as per customer requirements
  • Incomer & Outgoing devices with BMS intigiration if required
  • DOL/Star Delta/Soft Starter/VFD/Thyristor controls
  • Panels with PLC & HMI for Control and Monitoring

• Feeder Pillars
  • Ranges upto 3200A, 65/50ka Fault level
  • Incomer ACB, MCCB, Isolators, Vertical fuse switch
  • Outgoing Vertical strip fuseways upto size II with DIN type fuse / MCCB
  • Metering instruments as per customer requirements
  • 2mm / 3mm / 5mm thick galvanised sheet steel, SS and Aluminium Construction
  • IP 65 Ingress Protection

• Lighting Control Panels
  • Form 2 with IP65
  • Floor mounting type
  • Sheet Steel / Stainless Steel /Aluminium – Single /Double wall
  • Bottom cable entry with removable gland plates
  • Special control systems as per client requirement
  • Auto operation with photo cell + timer control

• PLC / Automation Panels
  • I/O Ranges as per client requirement
  • PLC, HMI, RTU and SCADA – Reputed Brands
  • Intigration with all major automation brands
  • Special solutions for water, waste water, HVAC, Power & Energy,
  • Buildings, Oil & Gas and other Industries
  • PLC based MCC, ATS, Somke Dections and Fire Alarams

• DDC / BMS Control Panels
  • Floor / Wall mounting type
  • Ingress protection of IP54 / IP65
  • Top or bottom cable entry with removable gland plates
  • Digital Inputs to monitors the on/off status from switches/contactors.
  • Analogue output is to control the field actuators devices.
  • Digital Output is to control relay or provide low voltages
  • Boost energy efficiency through programmable operations sequences

• MIMIC Panels
  • Super bright LEDs with a viewing range of 100 meters
  • Ground fault detection in the loop
  • Visula indication of fault and supervisory such Power failure
  • Floor / Wall mounting type
  • Contains custom simplified layout of the infrastrucre
  • Front view as per building view

• Isolator Panels
  • Ranges upto 2500A
  • Single pole / Three pole
  • Neatural / Onload / Offload / Disconnect / Motorised
  • Motorised / Manual mode of operation
  • Floor wall mounting type
  • Custom built isolator panels with various interlocks
  • Indoor and outdoor applications
  • Six pole isolator panel for motors

• IPS / Hospital Panels
  • Providing isolation for critical loads especially in emergency & operating rooms in hospitals
  • Maintaining the security and safety of patient
  • Preventing the power interruption
  • Monitoring & control of individual Circuit / Equipment
  • Menu adjustment on LCD screen
  • Data transmission through RS232/485
  • Transfer less than 5ms
  • Determination of fault location
  • Customizing the Panel according to project

• Meter Cabinets
  • Electric components like MCCB
  • Single phase & three phase and CT operated three phase meters.
  • Designed to withstand elevated temperature.
  • Customers full satisfaction in terms of reliability & safety.
  • Compliance to local regulation and other regulatory
